About This

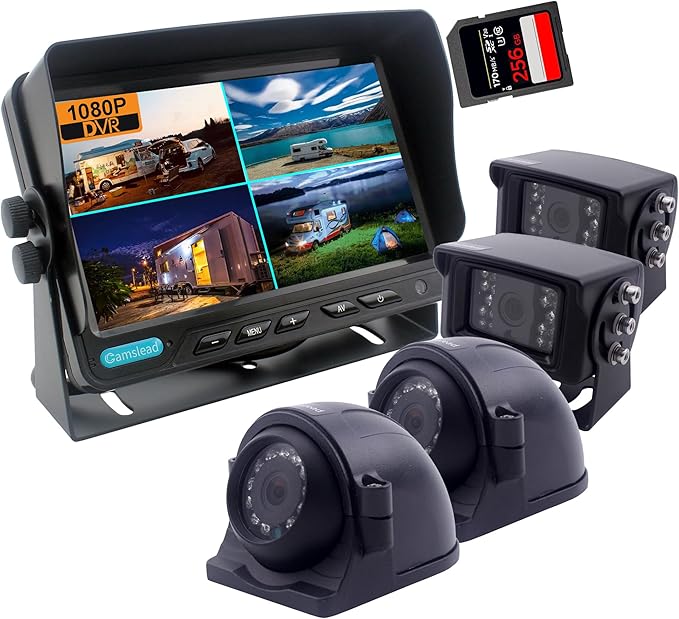

• 【Applications】This backup camera system is perfect for the fifth wheel, tractor trailer, trailer, Caravan and Horsebox application. It is complete with one HD monitor which built-in DVR recording, some 1080P color Cameras, and a few 4pin extension cables.

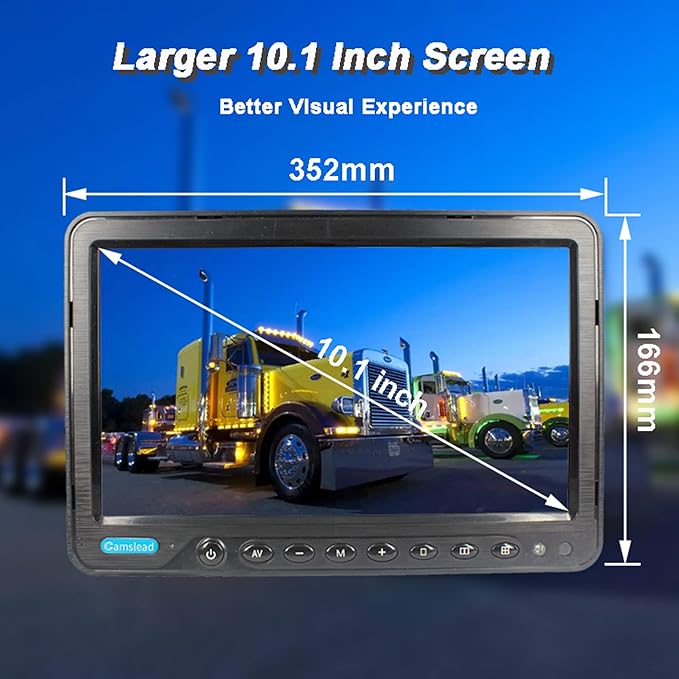

• 【HD Digital Monitor】High Definition Digital Color LCD wide screen video monitor, Resolution:1024(H)*600(V). Built-in quad / Split screen, able to show 4 camera views at one time. Built-in 8 multi-screen combination display modes, which can be set as the default boot screen to meet the special needs of different users.
• 【Monitor Built-in DVR Video Recording 】 High-definition 1080P Video Recording. The record files been stored in SD card, max support for SD card 256G video recording. Loop video, auto overwrite. You also can playback the normal videos and emergency videos on the monitor, or your computer by the SD card.
• 【24 hours Parking Monitoring 】This System monitors your vehicle’s surroundings while vehicle is parked. If you need this function, please connect the yellow wire to battery+ and the red wire to ACC+.

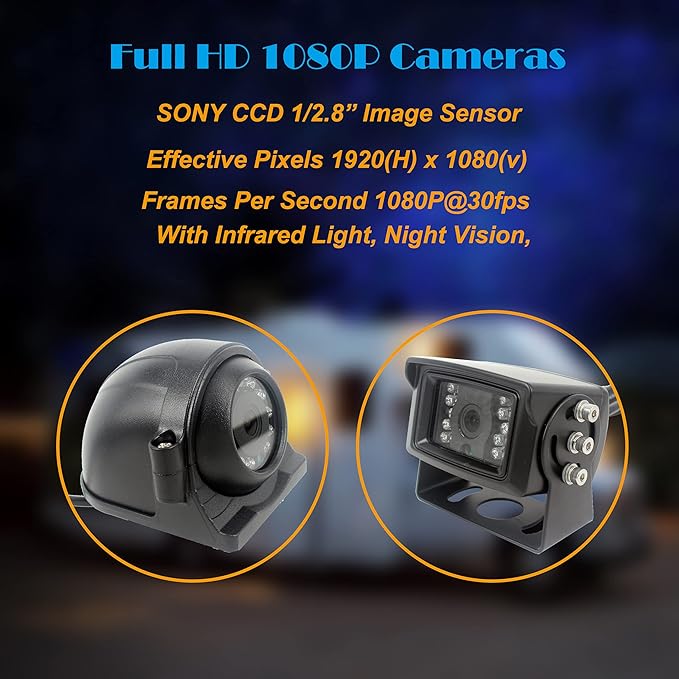

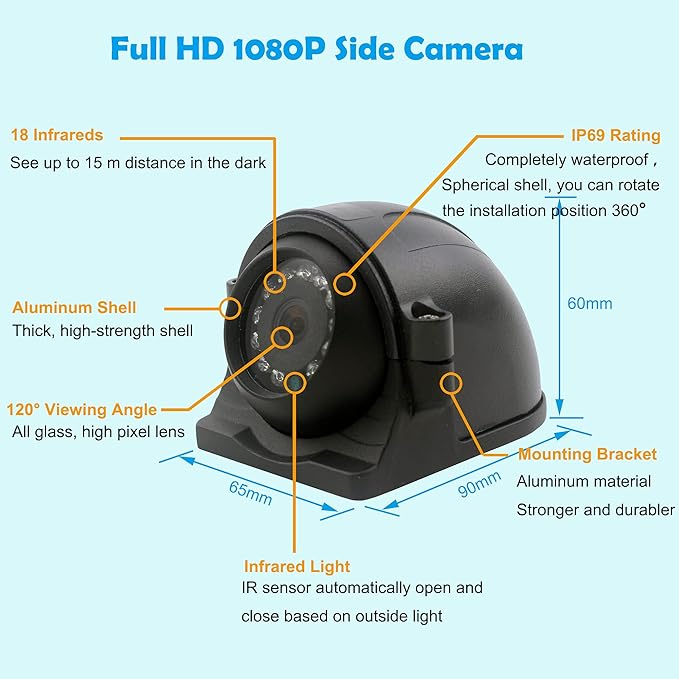

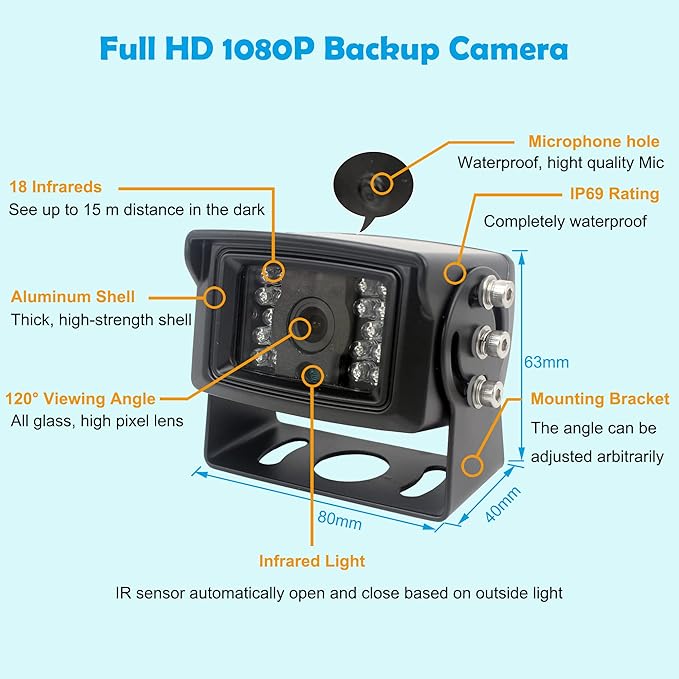

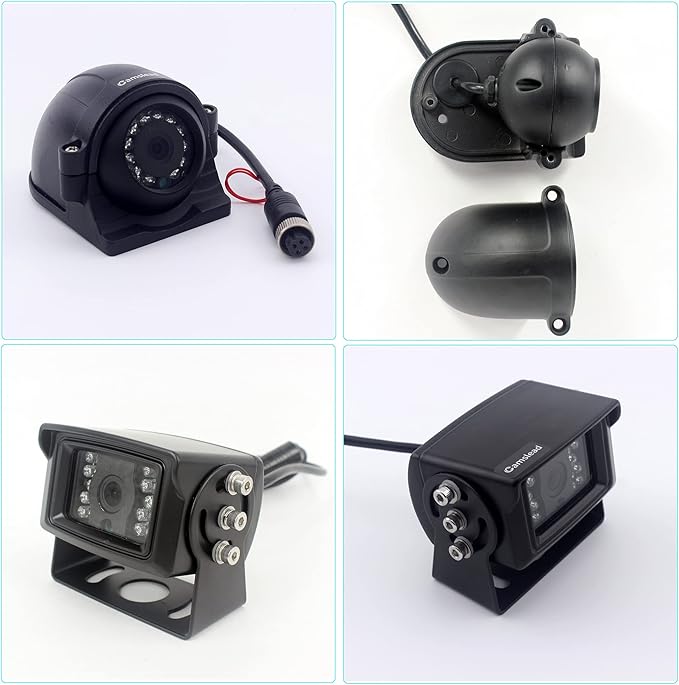

• 【Excellent Full HD Video Quality】1080P 1/2.8" 1080P Image Sensor. Both the rear-view camera and the side-view camera are used sturdy metal shell, the waterproof rating is IP69. Resolution:PAL:1920(H)*1080(V). The frame rate is 1080P@30fps. Operating temperature:-20℃～70℃. IR Night Vision, the backup camera built-in 18 IR LED, the side camera has 12 IR LED. Night vision distance up to 12 meters.

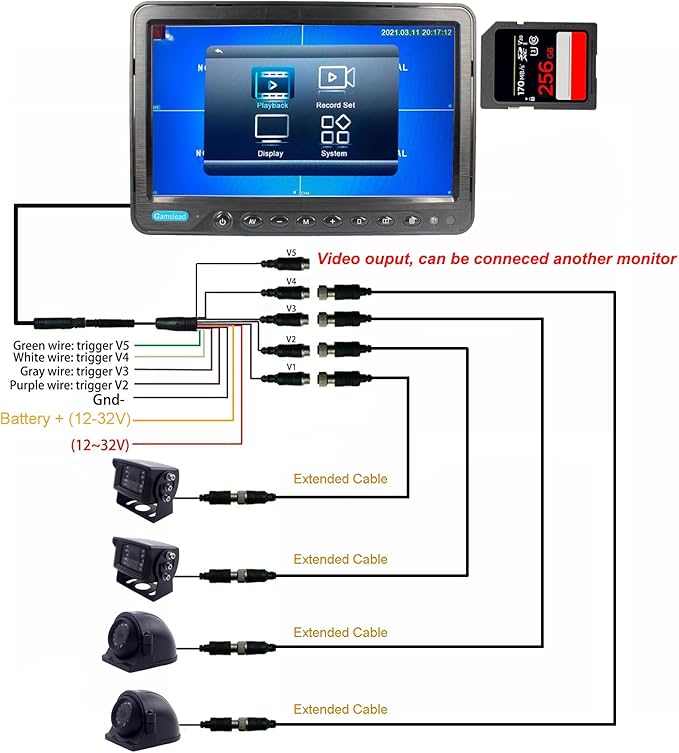

• 【Easy to Install】Please connect Red and Yellow wires to ACC, Black wire to the Metal (Ground), and other 4pin plugs to the cameras as Instruction showed. The trigger wire's connection depends on your need. AV1/AV2/AV3/AV4 with trigger wire, once trigger wire activated, the monitor will show the corresponding camera image in full screen.
• 【Parking Lines Assistance】Reversing screen with parking line will make your parking safer and faster. You can add parking lines assistance to the camera through the settings of the display.
• 【Wide Voltage Ranges】12V-36V DC power input range to fit most of the medium to large vehicles in production. Note: The package doesn't contain the SD Card, if you need, please let us know.

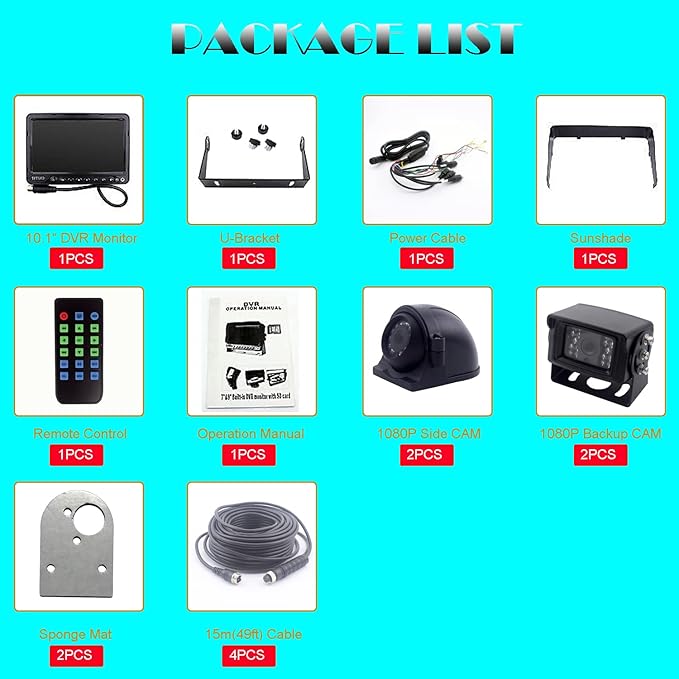

• 【Package List】10 inch Monitor with DVR x 1pcs; 1080P Side Camera x 2pcs; 1080P Side Camera x 2pcs; 4PIN 15m Cable x 4pcs ; Please kindly note: SD Card Is Not Included.

Overview

• Brand : Camslead
• Screen Size : 10 Inches
• Product Dimensions : 10"L x 7"W x 1.3"H
• Lux rating : 0.1 Lux
• Compatible Devices : Monitor
• Display Technology : LCD
• Installation Type : 安装表面
• Video Capture Resolution : 1080p
• Voltage : 36 Volts
• Optical Sensor Technology : CMOS
